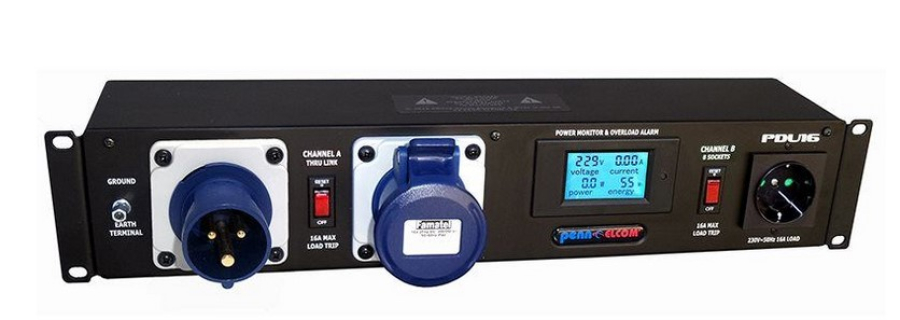

2U 16amp Rack Mount PDU with Power Monitor Pair of C-FORM Sockets with overload trip switch.
8 x Schuko Outlet Sockets with 16A overload trip switch.
Ideal solution for fast power distribution in stage, studio, and touring environments.
Circuit A
- Main Input: C-FORM 240V 16A IP44 Panel Mount Appliance Inlet
- Protection: Illuminated Circuit Breaker overload protection between dual 16A sockets
- Output: C-FORM 240V 16A IP44 Panel Mount Appliance Outlet
Circuit B

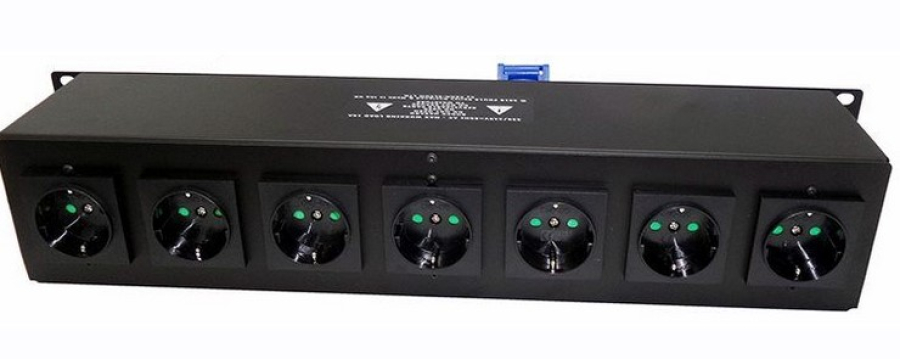

- Output: 8 Schuko style sockets compatible with plug types C, E & F usage within Germany France, Belgium, Poland, Slovakia, Czech Republic and Russia; with a Maximum Combined Load 16A.
- Protection: Illuminated Circuit Breaker 16A overload protection

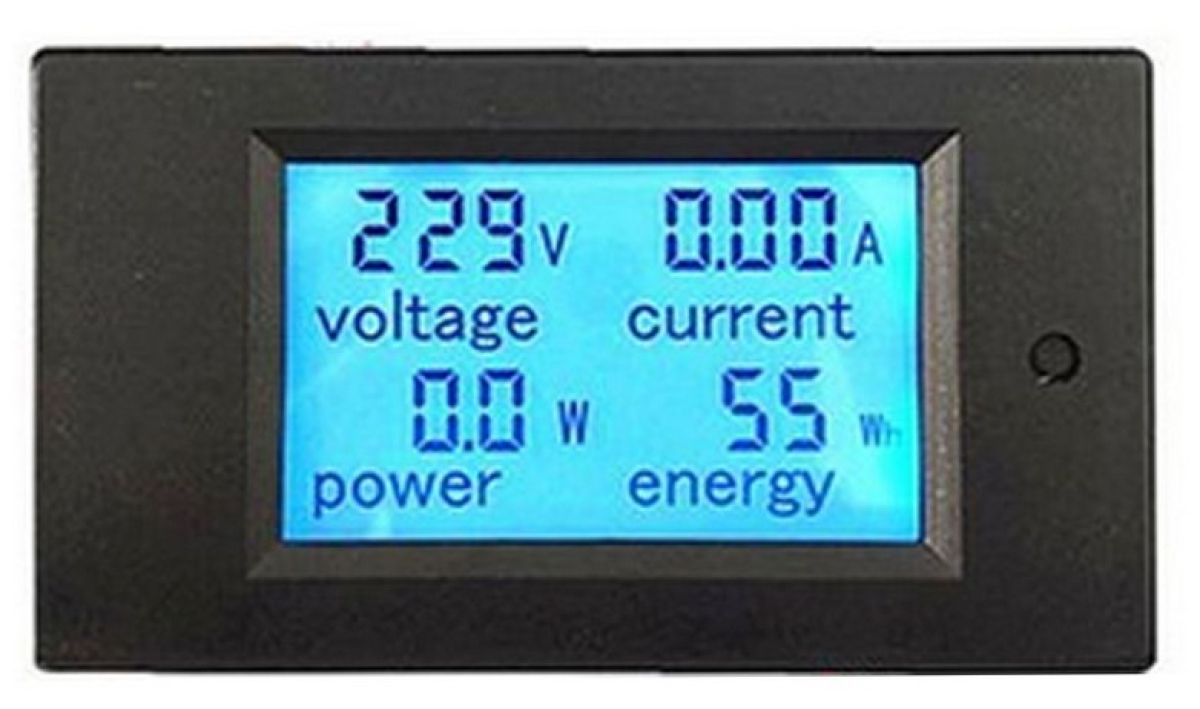

- LCD Monitor: LCD Power Monitor giving Voltage, Current, Power, Energy Levels & Overload Alarm.
- Earth Link: M4 Screw Terminal for Rack Grounding
Usage
- Nominal Voltage: 220V-240V
- Usable Voltages: 220V~240V full range
- Frequency: 50/60HZ full range
- Max. A/C Output: Current 16A
- Case Size: 88mm x 140mm x 430mm
Compliance: All components used in this conform to current RoHS, CE & UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
