2U 32 Amp AC Rack Mount PDU With 8 x Neutrik powerCon Sockets, Overload Protection & Power Monitoring
2U high Horizontal Mounting unit designed to provide versatile hook-up for the distribution of AC power within Multimedia Theatre & Touring rack applications.
Circuit A:
Main Input - C-FORM 240V 32A IP44 Panel Mount Appliance Inlet
Protection - Illuminated Circuit Breaker overload protection between dual 16A sockets
Output - C-FORM 240V 16A IP44 Panel Mount Appliance Outlet
Circuit B:

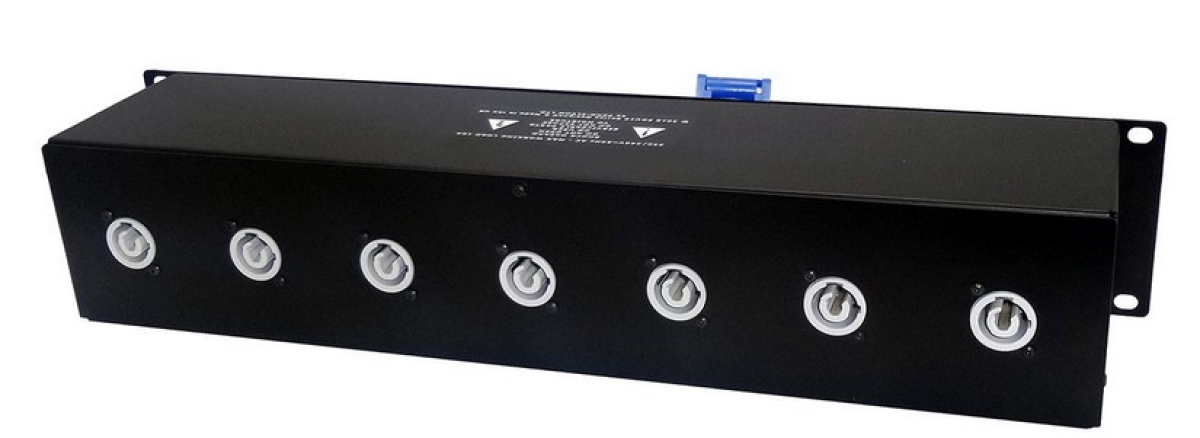

Output - 8 Neutrik powerCon sockets with a Maximum Combined Load 16A.
Protection - Illuminated Circuit Breaker 16A overload protection

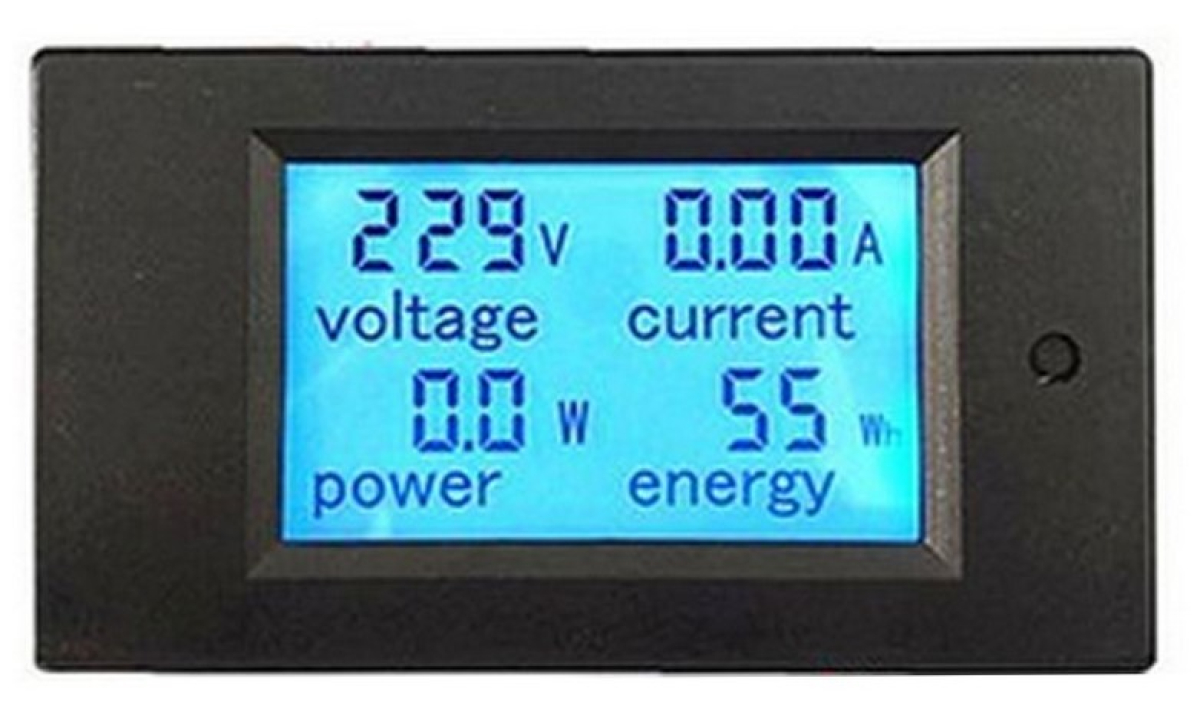

LCD Monitor - LCD Power Monitor giving Voltage, Current, Power, Energy Levels & Overload Alarm.
Earth Link - M4 Screw Terminal for Rack Grounding
Usage:
Nominal Voltage: 110V-240V
Usable Voltages: 110V-240V full range
Frequency: 50/60HZ full range
Max. A/C Output: Current 16A
Case Size: 88mm x 140mm x 430mm (O.A. 483mm)
Weight: 2.5kg
All components used in this conform to current RoHS, CE & UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
